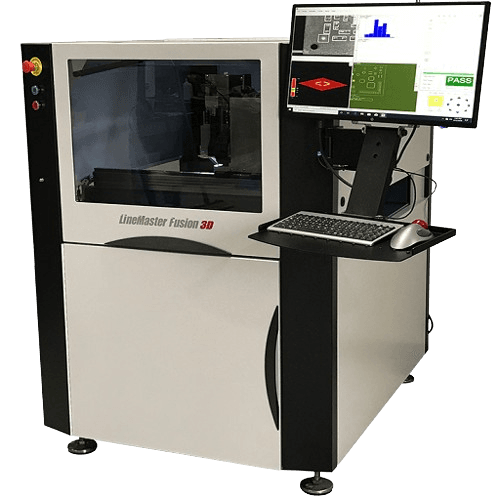

LineMaster Fusion 3D
The most affordable inline 3D SPI system on the market. High-speed, automatic 3-dimensional solder paste measurement with an intuitive Windows interface — engineered for production-line integration from day one.
Powered by ASC's proprietary PSI 1500® 3D sensor, the Fusion 3D delivers genuine volumetric measurement of every paste deposit on every board. Coupled with 5-minute GerberPro® programming and closed-loop printer feedback, it catches drift before defects are made — not after your reflow oven.
What Makes the Fusion 3D Different
Six engineering decisions that set the LineMaster Fusion 3D apart from comparable inline SPI systems — without the premium price.
PSI 1500® 3D Sensor Technology
ASC's proprietary Phase-Shift Interferometry sensor delivers genuine 3D measurement data — not interpolated 2D. True volumetric readings of every solder paste deposit with 0.125µm Z-resolution.
5-Minute GerberPro® Programming
Import your Gerber files and the system auto-generates a complete inspection program in under 5 minutes. No manual pad teaching. No lengthy setup. New product introductions are no longer a bottleneck.
Closed-Loop Printer Feedback
The Fusion 3D communicates directly with your solder paste printer to auto-correct stencil offsets and squeegee pressure before a bad board ever leaves the printer. Catch drift at the source.
Real-Time SPC Run Charts
Statistical process control data is captured and displayed in real time on-screen. Track trends, identify stencil wear, and intervene before you generate scrap — not after.
Photo-Realistic 3D Profiles
Every board generates true photo-realistic 3D renderings of solder paste deposits. Operators and engineers can visually confirm measurement data and zoom in on any suspect pad with a single click.
NIST Traceable Calibration
Factory calibration is traceable to NIST standards, giving you a defensible measurement chain for ISO audits, customer requirements, and internal quality programs.
Complete Solder Paste Characterization
The Fusion 3D doesn't just check if paste is present — it fully characterizes every deposit in three dimensions. This means you catch under-printing, over-printing, smearing, bridging, and X-Y offset simultaneously, on every board, in line.
Why 3D Matters
A 2D system sees pad coverage area — but a pad at 50% height still looks "covered" from above. The joint fails downstream.
The Fusion 3D measures actual paste volume. Low volume = cold solder. Excess volume = bridging. Both are caught before reflow.
SPC run charts trend volume and height over time, so you see stencil degradation happening — not after 500 boards, but after 5.
Technical Specifications
All specifications are from ASC International's published datasheet. Contact us for custom configurations and extended inspection area options.
LineMaster Fusion 3D — Full Specification Sheet
Specifications subject to change without notice. Contact ASC International for the latest datasheet.
Industries & Applications
The LineMaster Fusion 3D is deployed across electronics manufacturing wherever inline solder paste quality directly impacts yield and rework costs.
Related Products
LineMaster Falcon
Inline 2D-3D automated optical inspection using Prey technology with Detech2 detection software.
LineMaster DMI
Combined inline 3D SPI sensor and image-based AOI in a single inline system.
VisionPro M500
Benchtop 3D SPI with moiré technology for offline and sample inspection.
Get a Quote on the LineMaster Fusion 3D
Our application engineers will review your board types, production volume, and current defect profile — then give you a specific ROI projection for your line. No obligation. No sales pressure.
